Exp Aircraft Services

BXP 6401-1-(01)

Single block Mode S Transponder, 2¼ inch mount

The BXP6401-1-(01) is a compact and lightweight single block Mode-S transponder. It is certified according to ETSO-2C112a and is suited for VFR and IFR operations up to 50000 feet. The transponder is equipped with extended squitter and SI code function and it provides an interface to the central aircraft data system. It allows ELS, supports EHS, as well as ADS-B via extended squitter.

Retail Price $3795 (contact us for best price)

Brochure

Manual

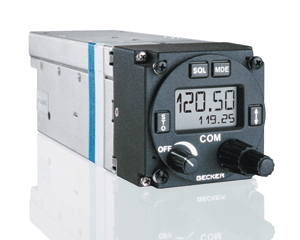

AR 4201 Communication Transceiver

Single block VHF/AM Transceiver, 2 inch mount

Compact VHF/AM Transceiver

* 118 – 136.975MHz
* 25 kHz
* 760 channels
* 7W power output
* 5W min.
* 14 VDC
* sunlight readable LCD
* active / preset frequencies
* channel mode
* memory up to 99 channels
* illumination 14V

Retail Price $1595 (contact us for best price)

Brochure

Manual

Wiring Diagram

AR 6201-(002) Communication Transceiver

Single bock VHF/AM Transceiver, 2 inch mount

New AR6201 VHF-AM Transceiver with 8.33 kHz channel spacing and integrated intercom Becker Avionics introduces its new high performance, compact, AR6201 VHF-AM Transceiver with 8.33 kHz channel spacing and integrated voice activated (VOX) intercom system for up to four passengers. The AR 6201 continues the legacy of its predecessor the AR4201 VHF-AM transceiver, which has set the benchmark for reliability and performance. With more than 18.000 units sold, the AR4201 has been the trustworthy companion for thousands of pilots flying millions of flight-hours.

The new AR6201 is built using state-of-the-art DSP (Digital Signal Processing) technology resulting in a highly efficient transmitter and very sensitive receiver. The AR6201 represents a quantum leap forward in technology, performance, technical sophistication and robustness.

• Main Features:
• Frequency Range: 118.000 MHz to 136.990 MHz
• Channel Spacing: 8,33 or 25 kHz
• Channel Selection: 8.33 or 25 kHz (selectable)
• RF-Output Power: > 6 W
• Receiver Sensitivity: >6dB for 2µV
• Input Voltage Range: 9 VDC to 36 VDC
• Operating Temperature Range: – 20 degrees C to + 55 degrees C
• Current consumption: 2A @ 12 VDC (transmit), 140mA @ 12 VDC (receive standby)

Retail Price $1895 (contact us for best price)

Link to more info

BXP6403-1-(01)

Single block Mode S Transponder

Single block Mode S Transponder

The BXP6403 is standard width Mode-S transponder designed for slide-in mounting (tray available). The use of an adapter (available as accessory) allows for retrofit in a KT 76 A tray. It is suited for VFR and IFR operations up to 15,000/50.000 ft (Class I or II). The sunlight readable display can be illuminated and dimmed for night operation. TSO Certified.

Retail Price $3850 (contact us for best price)

Brochure

Manual

Accessories

This page is still under construction
